Narrow- and medium-band filters, 7500 to 7999 A

Mount Hamilton Filter List

Narrow and Medium-band Filters
from 7500 to 7999 Angstroms,
kept at the 3-meter

Central
Wavelength FWHM Notes Measured
Wavelength/Width^d

7500 400 Borrowed in 1997 by Chris Simpson & Dan Stern. Never returned.

7531 84 Borrowed in 2002 by Arjun Day. Never returned.

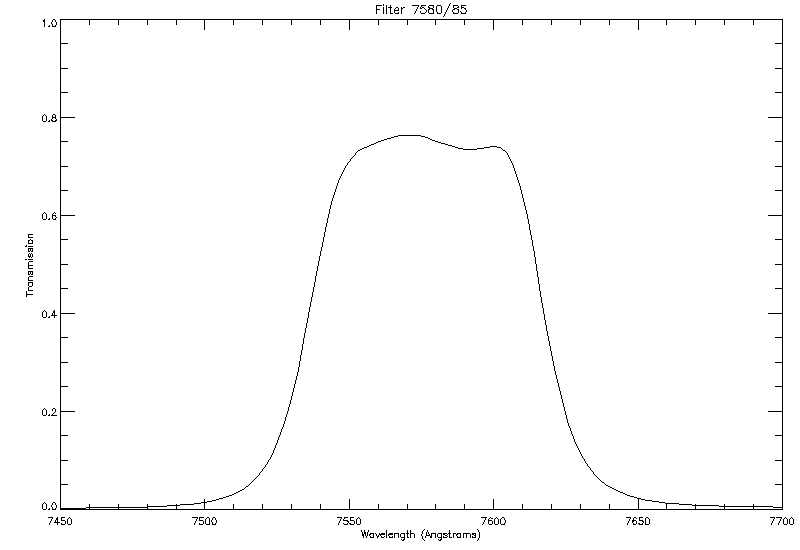

7580 85 Plot,Table^a 7577/76

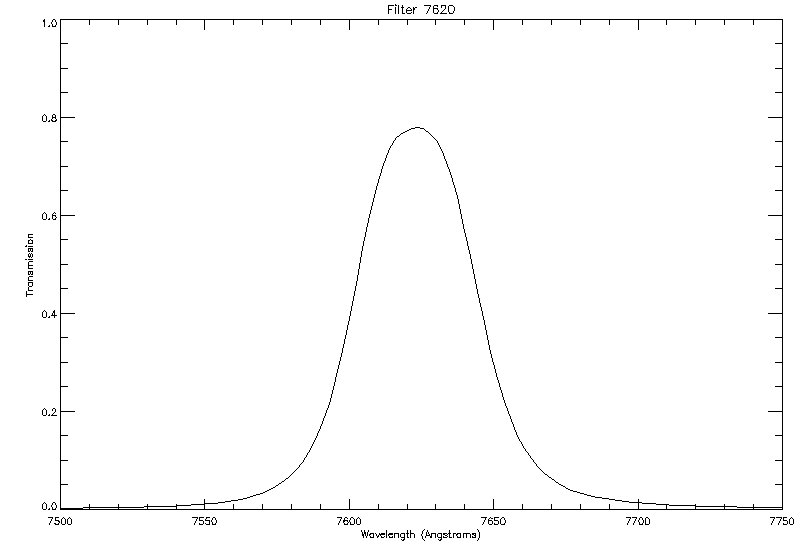

7620 45 Plot,Table^a, Fingerprint on orange side. 7623/45

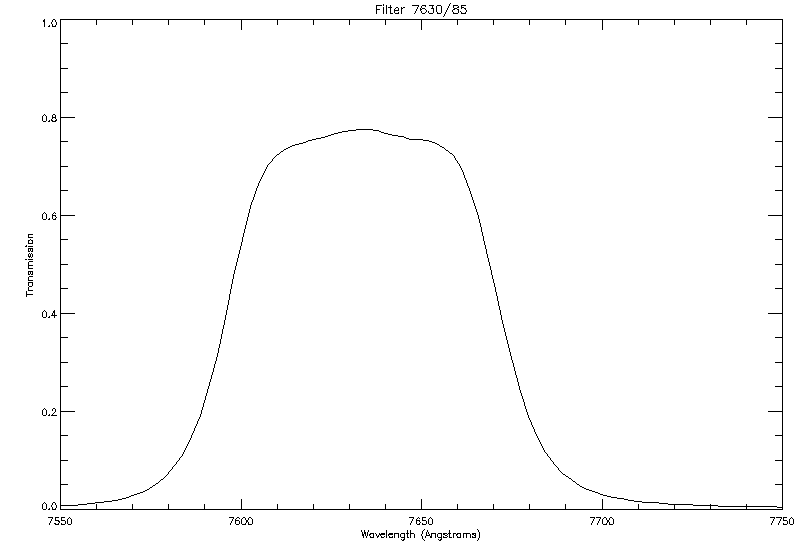

7630 85 Plot,Table^a 7634/71

7680 85 Plot,Table^a 7678/71

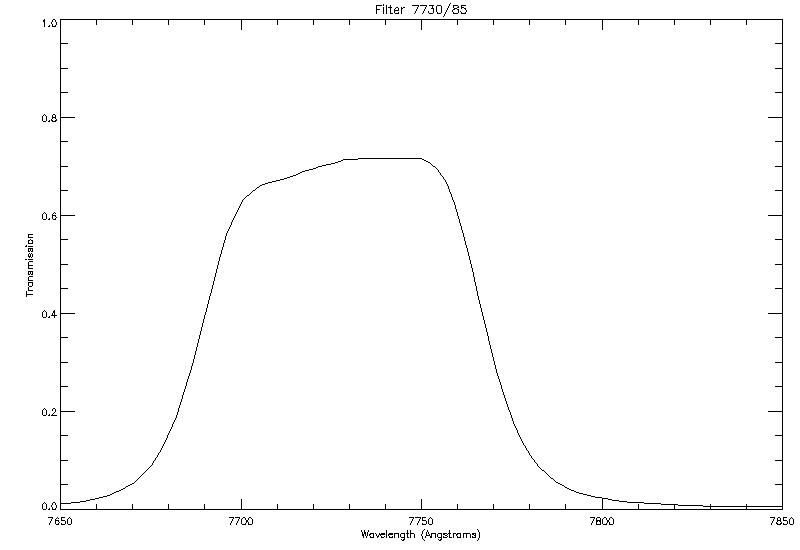

7730 85 Plot,Table^a 7729/74

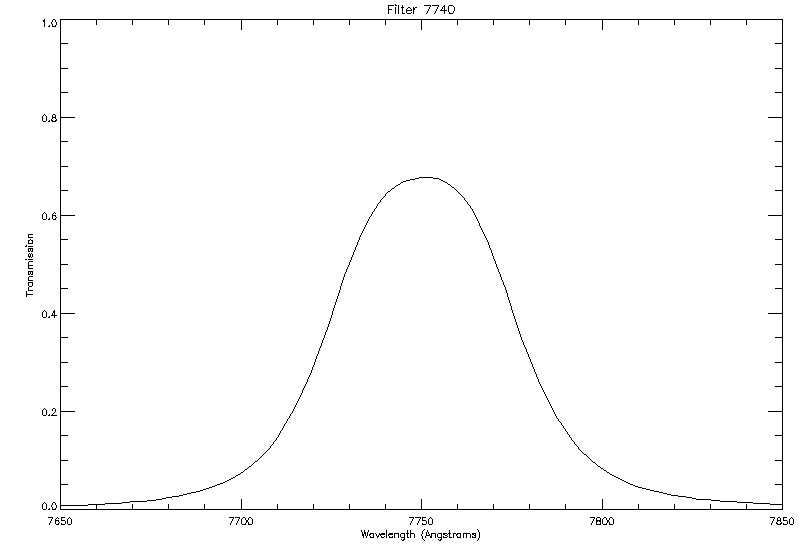

7740 55 Plot,Table^a 7750/54

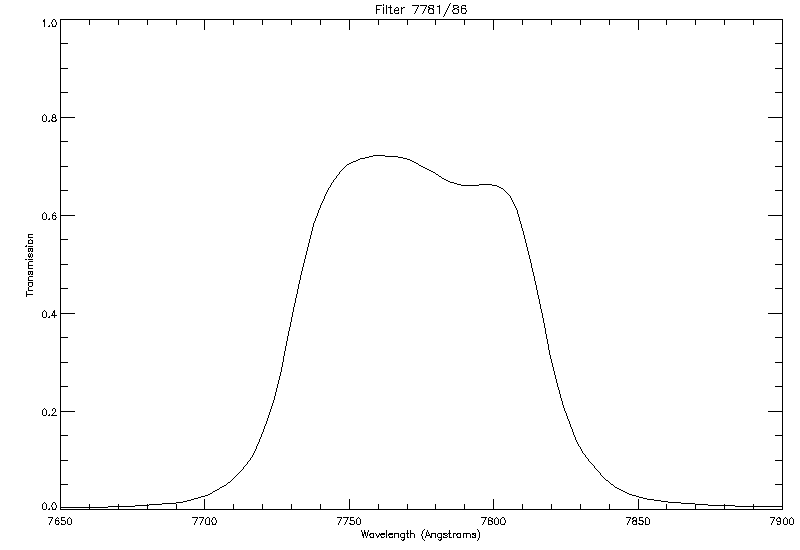

7781 86 Plot,Table^a 7773/83

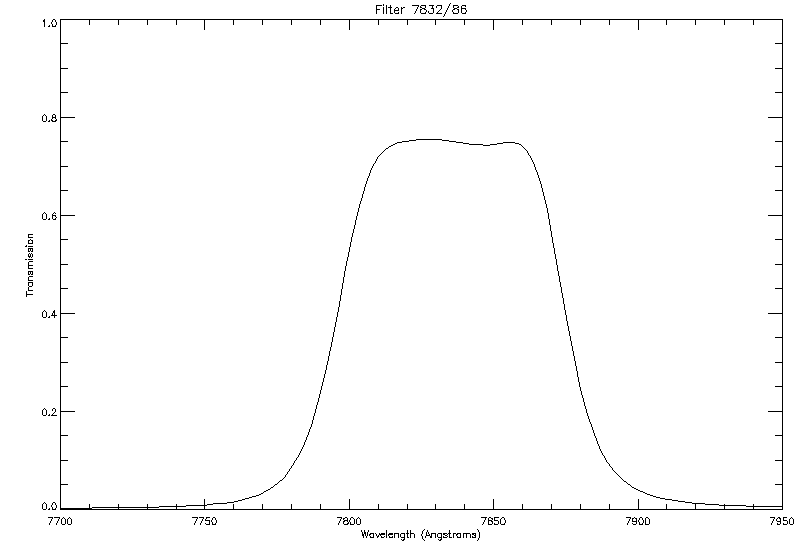

7832 86 Plot,Table^a 7836/74

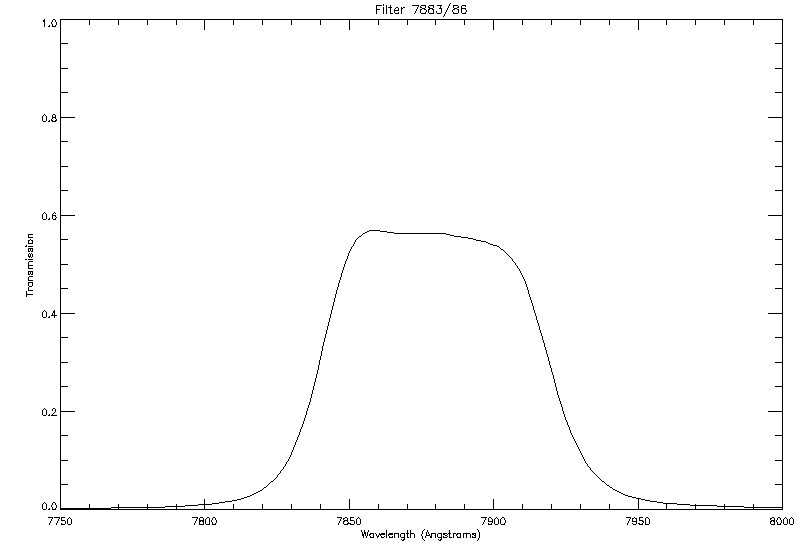

7883 86 Plot,Table^a 7879/74

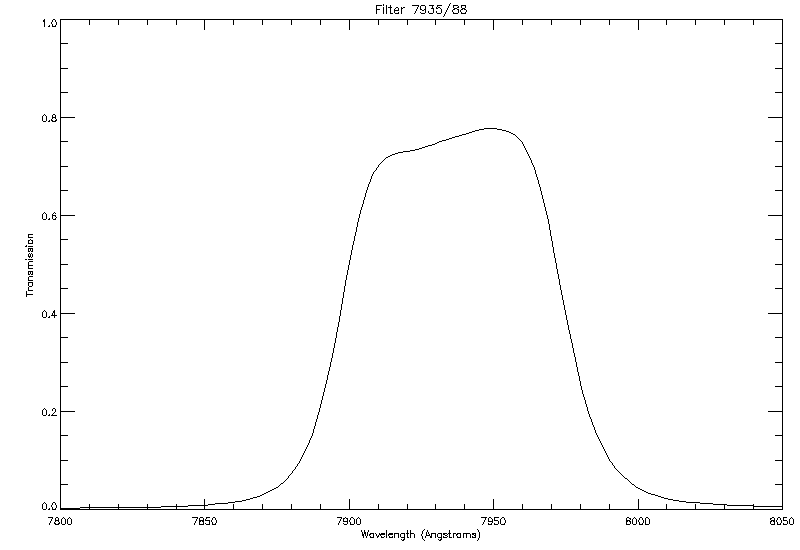

7935 88 Plot,Table^a 7937/73

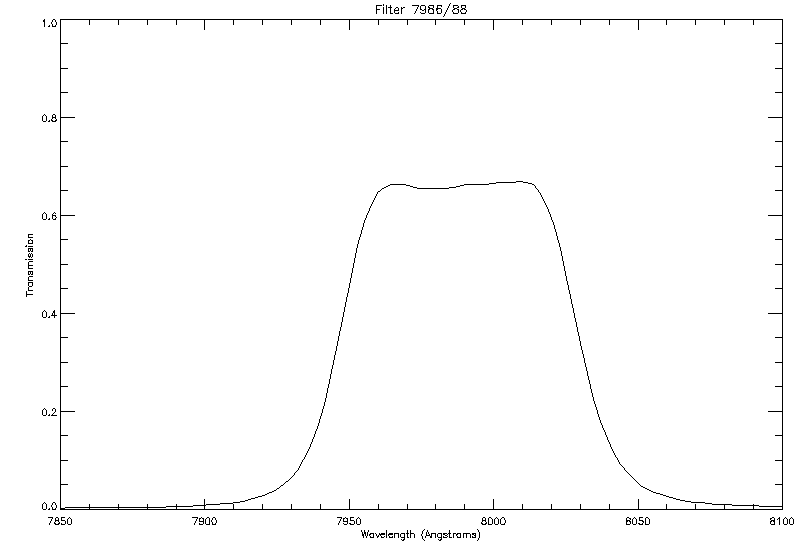

7986 88 Plot,Table^a 7988/78

Central Wavelength	FWHM	Notes	Measured Wavelength/Width^d
7500	400	Borrowed in 1997 by Chris Simpson & Dan Stern. Never returned.
7531	84	Borrowed in 2002 by Arjun Day. Never returned.
7580	85	Plot,Table^a	7577/76
7620	45	Plot,Table^a, Fingerprint on orange side.	7623/45
7630	85	Plot,Table^a	7634/71
7680	85	Plot,Table^a	7678/71
7730	85	Plot,Table^a	7729/74
7740	55	Plot,Table^a	7750/54
7781	86	Plot,Table^a	7773/83
7832	86	Plot,Table^a	7836/74
7883	86	Plot,Table^a	7879/74
7935	88	Plot,Table^a	7937/73
7986	88	Plot,Table^a	7988/78

PREVIOUS (7000-7499)

NEXT (redward of 8000)

^aMeasured by M. Clendenin, 2012.
^dGaussian fit to 2012 plot.
